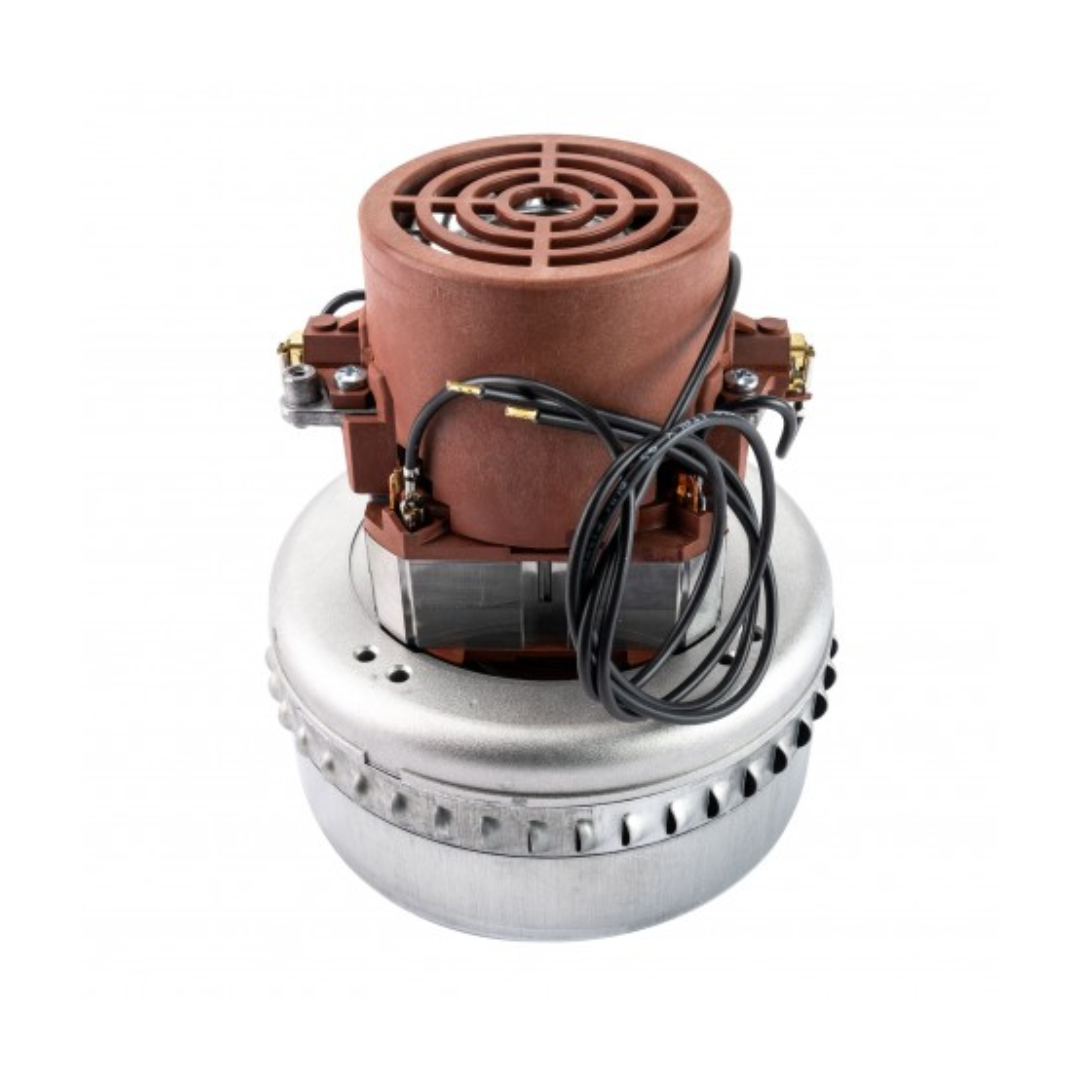

Domel OEM Two Stage Bypass Motor 5.7" 120 V - 4923314

The Domel 2-Stage Peripheral Discharge Bypass Motor is a high-performance replacement motor designed for central vacuums, commercial cleaning equipment, and other vacuum systems. Built with dual ball bearings for durability and smooth operation, this 120V motor delivers strong suction with a 93.2 CFM airflow and 83.5" sealed water lift. Its compact 5.7" body diameter and 6.4" height make it suitable for a wide range of applications. Featuring a radial discharge design, 310 maximum air watts, and intermittent duty rating, this motor ensures reliable performance and efficiency. Ideal for demanding environments where consistent suction power is required.

Key Features:

• 2-stage bypass motor with radial discharge
• Dual ball bearings for extended motor life
• 120V, 60 Hz, single phase, max 8.3 amps
• Delivers 93.2 CFM airflow and 83.5" water lift
• Maximum 310 air watts, 33% efficiency
• Compact design: 5.7" body diameter, 6.4" height
• Intermittent duty with 650-hour average life expectancy
• Sturdy metal mounting brackets for secure installation
